ESCORT DU-180

Price: 93 USD

In stock

Code: 00-00008168

Rating:

pcs.

Buy

Buy in 1 click

Request a sample

Instructions

Description

DU-180 is a measuring device that provides continuous monitoring of the state of the change in the angle of inclination relative to the horizontal axis.

The tilt angle sensor allows you to transmit information in the form of a digital and analog signal. Depending on the selected mode, data on the change in the deflection angle of the controlled mechanism is generated via the RS-485 interface, in the form of a frequency signal or switching of discrete outputs

Technical Specifications

Manufacturer	Escort
Supply voltage, V	9 - 36
Interfaces	Discrete / Frequency / RS-485
Code	00-00008168
Rating	5
Digital mode	Yes
Communication protocol	RS-485
Data exchange rate, bit/s	19200
Analog mode	No
Frequency mode	Yes
Frequency output range	300 - 480 Hz
Measurement error	no more than 1%
Working temperature	-60°С - +85°С
Dimensions	80 х 80 х 40 mm
Weight	no more than 0.5 kg
Case protection	IP67

Documentation

Паспорт ДУ-180	2.45 МБ	Download
Руководство пользователя ДУ-180	3.28 МБ	Download

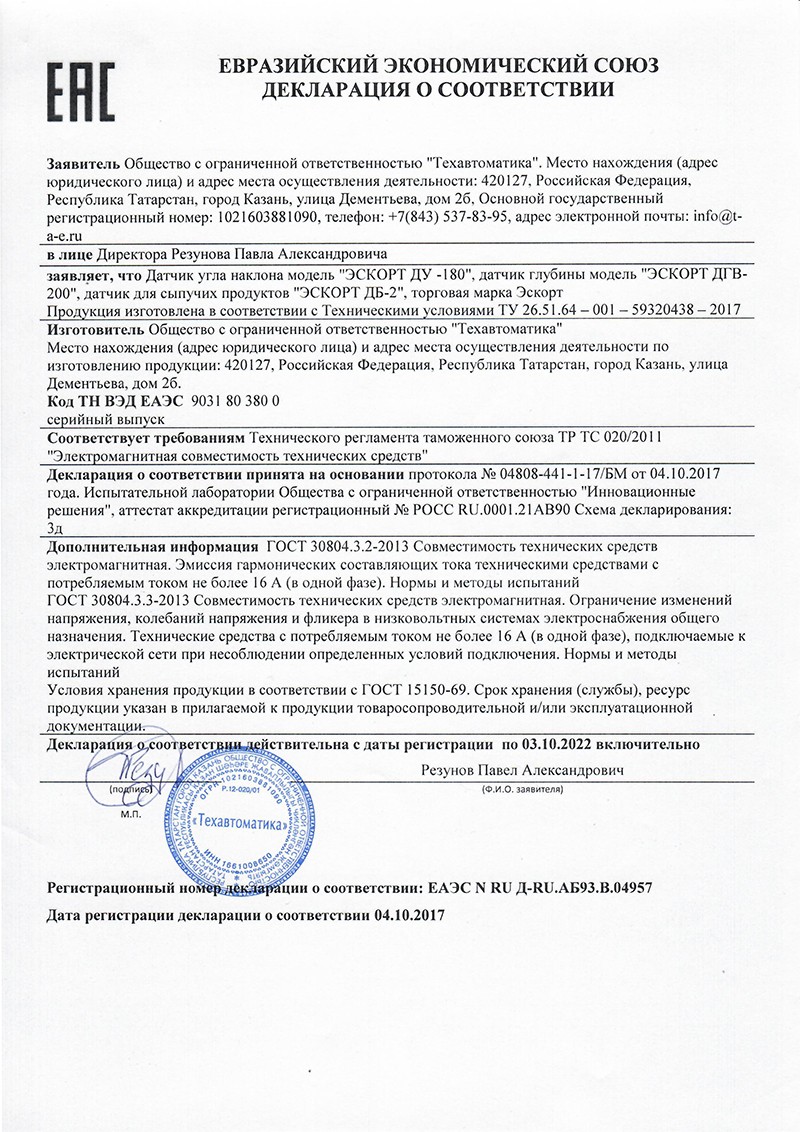

Декларации о соответствии ДГВ-200,ДБ-2,ДУ-180	256.53 КБ	Download

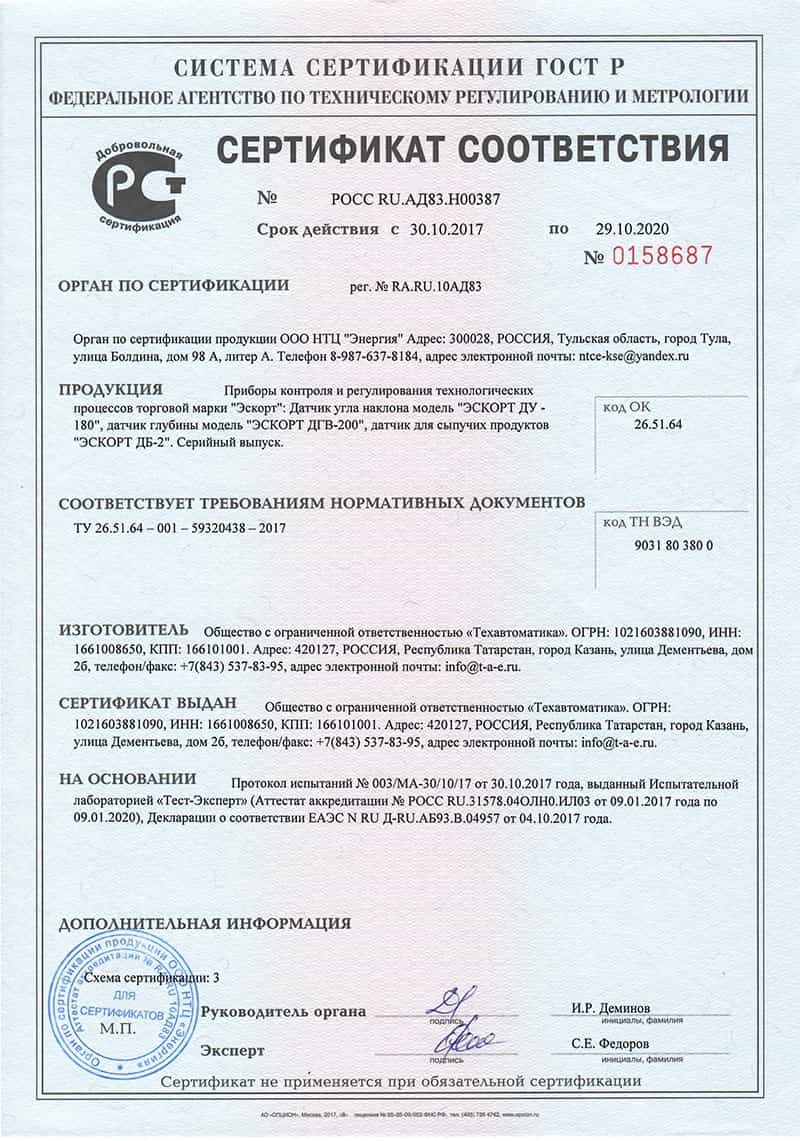

Сертифиткат соответствия ДУ-180,ДГВ-200,ДБ-2	92.72 КБ	Download

Software

Конфигуратор ДУ-180.zip	Download
Прошивка ДУ-180.zip	Download
